    ALTIRA OFFICE TOWER



    BUILDING INFORMATION



    Building Concept :

    Altira Office Tower is a premium 32-storey Grade-A Office Tower with 3 levels of basement parking. The Tower is equipped with premium facilities and quality specifications such as:

    • Low-E double-glass window
    • VRF air conditioning system
    • 12 high-speed low/high zone and VIP lift
    • Luxurious interior of the main lobby and public areas
    • Green Building Certification for Design Recognition
    • Full Fiber Optic internet connection
    • Helipad facility at roof top tower

    Other Features :

    • Strategic location
    • Wide green areas
    • Ample parking space
    • Front and rear access to the complex
    • Spacious driveway within the complex
    • Efficient floor plate
    • Extensive retail areas
    • 24-hour security with CCTV



    SITE PLAN :

    Site Plan Altira Business Park


    Building Space :

    Total Office Area

    :

    +/- 51,683.80sqm Semi Gross

    Total Number of Floors

    :

    32-storey Office Tower (5-storey Podium + 27-storey Typical Floors) & 3 levels of basement parking

    Typical Office Floor Plate

    :

    +/- 1,700sqm Semi Gross (Subject to Final Measurement)

    Total Number of Parking

    :

    +/- 1,161 total parking lots for cars (Ratio 1:67)




    FLOOR PLAN GROUND FLOOR :
    Ground Floor Altira Office Tower


    FLOOR PLAN         LOWZONE:
    Floor Plan Low Zone Altira Office Tower


    FLOOR PLAN         HIGHZONE:
    Floor Plan High Zone Altira Office Tower
    FLOOR PLAN     BASEMENT 1:
    Floor Plan Basement 1 Altira Business Park
    FLOOR PLAN     BASEMENT 2:
    Floor Plan Basement 2 Altira Business Park

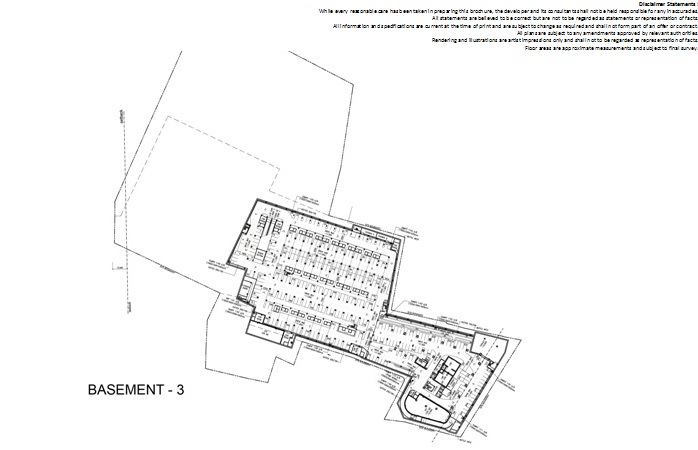

    FLOOR PLAN     BASEMENT 3:
    Floor Plan Basement 3 Altira Business Park


    Structural Specification :

    Floor to Ceiling Height

    :

    Main Lobby : +/-7,8 m ; Podium : +/-3,1 m ; Typical Floor : +/-2,9 m

    Floor Loading Capacity

    :

    Typical Floor – 250 kg per sqm

    Main Lobby

    :

    Floor                                         : Marble and or granite

    Wall                                          : Marble and or granite

    Ceiling                                       : Painted gypsum board with drop ceiling design

    Window (all around building)    : Clear frameless tempered glass

    Sliding doors                             : Clear tempered glass double door (2 sets)



    Typical Common Corridor

    :

    Floor      : Marble and /or granite

    Wall       : Marble  and/or granite @ core wall and paint finish at office wall

    Ceiling    : Painted gypsum board with drop ceiling design (ceiling height + 2,7 m)

    Rest Room



    :

    Female                          : 4 water closet and 2 lavatories on each floor

    Male                              : 3 water closet and 3 urinoir and 2 lavatories on each floor

    Executive Toilet             : 1 water closet, 1 shower and 1 lavatories on each floor (except GF)

    Sanitary fixture             : American Standard or equivalent (grade A quality)

    Fitting                            : American Standard or equivalent (grade A quality)

    Vanity                           : Granite/marble, lavatory ex American Standard or equivalent (grade A quality)

    Urinoir                           : American Standard or equivalent (grade A quality)

    Toilet Cubicle                 : HPL partitions

    Automatic hand dryer   : Provided in each toilet

    Pantry

    :

    Wall & floor                   : Homogeneous tile & painted finish

    Sink                              : Stainless Steel Sink Bowl



    Mechanical & Electrical Information :

    Lifts

    :

    6 high-speed passenger elevator for High Zones Floor; Capacity 1600 kg (24 persons)

    4 high-speed passenger elevator for Low Zones Floor; Capacity 1800 kg (26 persons)

    1 Executive Lift with access card; Capacity 1000 kg (15 persons)

    1 Service Lift; Capacity 1800 kg (26 persons)

    2 Parking Lift (Basement 3 to Ground Floor)

    Electricity (Office)

    :

    PLN and 100% genset-powered back up

    Air Conditioning System

    :

    VRF System to each unit

    Water Supply

    :

    PDAM



    Security and Safety Measures :

    Building Automated System

    :

    Computerized system, central alarm, ACMV, lighting, fire protection,

    elevator system, CCTV, plumbing system

    Fire Safety System

    :

    Fire hydrant, fire sprinkler, automated fire alarm system, smoke & heat detectors,

    emergency stairs with pressurizing fans, fire house & fire extinguisher on each floor.



    General Security :

    Security System

    :

    24-hours  security monitoring and integrated system for security

    Security Check Point

    :

    Vehicle screening and gate barrier for cars

    CCTV

    :

    Installed  in Access and Exit points to the building

    Fire Safety System

    :

    Automation Fire Alarm and Sprinkler System, Fire Hydrant, Smoke & Heat Detector, Fire Hoses & Extinguishers





    Developer and Consultants :

    Developer

    :

    PT. Sinar Grahamas Lestari

    Design Architect

    :

    Smallwood Reynolds Stewart ,Stewart & Associates, Inc. (Atlanta, Georgia, USA)

    Executive Architect

    :

    PT. Design Global Indonesia

    Interior Design

    :

    Jeffrey Budiman / PT. Grain and Green

    Structural Consultant

    :

    PT. Haerte Widya Konsultan Engineers

    Geotechnical Consultant

    :

    PT. Geo Prima

    Mechanical and Electrical Consultant

    :

    PT. Arnan Pratama Consultants

    Drainage Design

    :

    PT. Aramsa Infrayasa

    Green Building Consultant

    :

    PT. Airkon Pratama

    Landscape Consultant

    :

    Santoso Widjaja (San-San)

    Special Lighting

    :

    ARTmosphere Lighting Consultant & LightLinks International Limited

    Facade Consultant

    :

    PT. Paul Adams Facades

    Quantity Surveyor Consultant

    :

    PT. Langdon & Seah Indonesia

    Property Management

    :

    PT. Cushman and Wakefield Indonesia

    Main Contractor

    :

    PT. Nusa Konstruksi Enjiniring, Tbk.




    Disclaimer Statements :
    While every reasonable care has been taken in preparing this brochure, the developer and its consultants shall not be held responsible for any inaccuracies.
    All statements are believed to be correct but are not to be regarded as statements or representation of facts.
    All information and specifications are current at the time of print and are subject to change as required and shall not form part of an offer or contract.
    All plans are subject to any amendments approved by relevant authorities.
    Rendering and illustrations are artist impressions only and shall not to be regarded as representation of facts.
    Floor areas and other measurements are approximate only and are subject to final survey.
